Why Brushless Motors Are Revolutionizing Electric Bikes

For riders obsessed with the best adult electric bikes, you likely already know about brushless DC motors. These ingenious powerplants enable modern electric bikes to produce massive torque with minimal noise. As a zealous electric bike junkie constantly hunting the fastest e-bikes, I explored why brushless DC (BLDC) motors dominate this exploding category. Here’s what I discovered about these game-changing drive systems found in high-end electric motorcycles and off-road electric bikes.

Demystifying Brushless DC Motors

Brushless motors are a game-changing advancement in electric bike technology that does away with the traditional carbon brushes that previously rubbed directly on rotating shafts. Brushless direct current (BLDC) motors represent a paradigm shift from traditional direct current (DC) motors, which relied on fixed magnets in the casing, spinning brushes on the armature, and mechanical commutation triggering electromagnetic polarity flips to rotate the central shaft. BLDC motors have permanent magnets attached to their rotors, which are surrounded by electronically controlled copper coil windings.

The sophisticated integration of sensors and algorithms that orchestrate precisely timed pulses of current in these windings is the key innovation. This meticulous control keeps the rotor magnets in sync indefinitely, eliminating the need for physical brushes. This electronic commutation not only eliminates a wear-prone mechanical component but also enables finer low-speed control and peak efficiency at higher revolutions per minute (rpms). In contrast to traditional DC motors that use fixed magnetic polarity, the rotor in BLDC motors essentially chases a rotating high-efficiency sweet spot created by the pulsed coils. This innovative approach to motor design represents a significant advancement in electric bike efficiency and control.

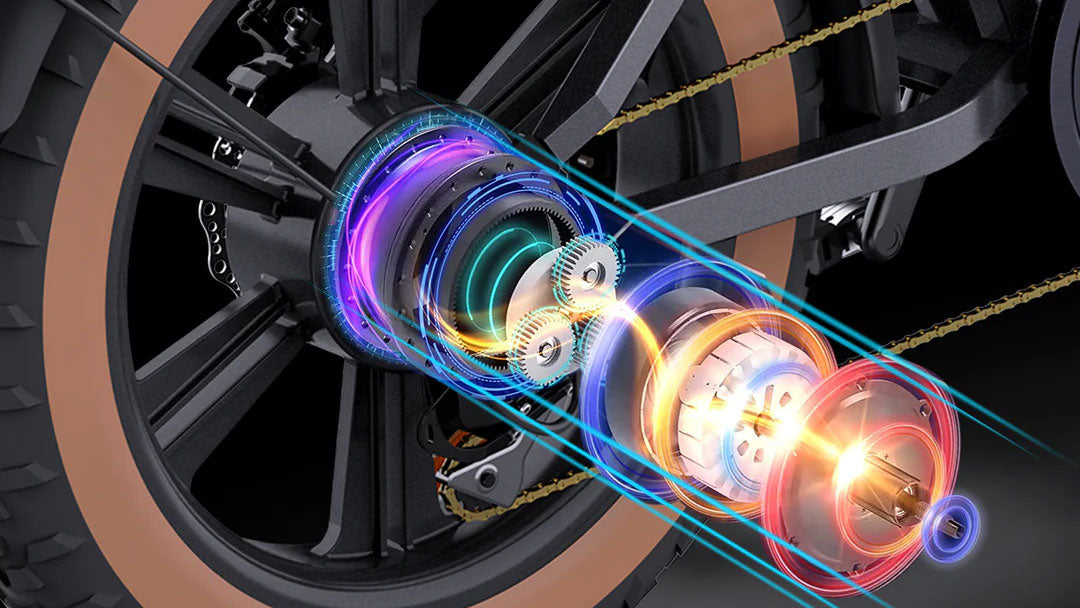

Cutaway E-bike Motor
Cutaway E-bike Motor - by merryebike

Why Brushless is Better: Efficiency, Power Density, and Durability

Transitioning to brushless unlocks substantial performance benefits:

To begin with, eliminating brushes eliminates significant energy-sucking mechanical friction and wear issues. Brush debris accumulation significantly reduces the lifespan of electric bike motors while wasting valuable battery juice.

A brushless motor, on the other hand, has a freely spinning rotor with minimal friction, resulting in significantly higher efficiency. A brushed e-bike motor has a lifespan of 5,000 hours before the brushes need to be serviced, whereas quality brushless units hum along smoothly for 50,000+ hours. That's a tenfold increase in operational durability!

But hold on, there's more! By eliminating brushes, these fast electric bikes offer much stronger magnets that can be used without fear of demagnetization due to friction. This allows for smaller motors to produce more torque while remaining lightweight. This is critical for e-bikes aiming for the best power-to-weight ratio.

An elegantly compact BLDC motor coupled with a featherweight lithium-ion battery can output frightening torque levels that compete with large industrial motors. This combination of extreme strength and density drives the brushless Revolution in high-performance electric bikes.

How Brushless Motors Unlock Insane Torque

Here’s a pivotal discovery from my deep-dive researching electric bike performance tech:

Brushless motors generate torque in a completely different way than traditional DC motors, using precise sequences of coil energizing/de-energizing to shape a rotating magnetic clamping force that drags the magnetized rotor along.

To get the most torque out of these motors, e-bike engineers heavily optimize factors like timing, efficiency maps, and battery usage profiles. The results are simply astounding...

We're talking about twisting forces of 80+ Nm from an electric bike motor no bigger than your fist! When compared to a conventional brushed DC motor, which may deliver 30 Nm for the same wattage, the torque density is nearly tripled! These are most certainly some of the best e-bikes in the industry.

This incredible rotational force allows riders to accelerate from 0 to 20 mph in just a few pedal strokes. Steep hills that once required granny gears are now easily conquered. It's no surprise that brushless motors are powering a revolution in electric bike performance. Expect even more brushless dominance as magnet and electric bike battery technology improves.

HappyRun Electric Motorbike G100

The Powerfully Compact and Customizable Design of BLDC Motors

During my research, I was struck by how the elegant brushless construction concentrates enormous magnetic power generation in deceptively small packages. Check out this cutaway of premium e-bike motor internals:

Have you noticed the lack of brushes and commutators? This frees up valuable space for incorporating advanced magnet composites and optimizing coil windings while maintaining an ultra-compact footprint. There is no squandered space here! Modern exotic magnets, such as neodymium, provide profoundly intense magnetic flux density from much smaller sizes than was previously thought possible. These motors produce shocking muscle when combined with fine-tuned stator geometry that optimizes torque output.

But there's more to admire here than just the beastly power density and smooth durability. The sophisticated electronics that control brushless systems also allow for custom tuning performance for each electric bike model. Acceleration rates, efficiency maps, thermal throttling, and dynamic torque response can all be programmed by manufacturers to perfectly match bikes ranging from gentle road electric bikes to extreme off-road e-bikes designed to attack canyon trails.

It’s this talent for tailoring a motor’s exact electronic personality to each bike that gives modern BLDCs such flexible applicability across various e-bike types. From neighborhood runabouts to navigating bullying boulder fields, these brushless systems excel.

Brushless Tech Dominates Modern E-Bikes - And It’s Just The Beginning

When researching the meteoric rise of brushless drive systems in electric bikes, it becomes abundantly clear that they have a rapidly overwhelming market dominance. Simply put, they enable a tantalizing combination of torque, efficiency, durability, and electronic customizability previously unavailable from brushed motors.

Given advantages such as 90%+ energy conversion ratios, 50,000-hour service lifetimes, and precise electronic profile matching to bike behavior, BLDCs are ideal for premium electric bike models intended for pavement commutes or off-road adventures.

Brushed motors ruled the twentieth century, but brushless technology is proving to be the successor in the twenty-first. No other competitor in propulsion can match their sublime balance of strength, smoothness, and dynamic customizability.

We're still in the early stages of development, so expect even better BLDC performance and bike integration as battery densities improve. We'll see increased adoption of whisper-quiet operation in new electric bike segments such as cargo and fat bikes.

When pinning the throttle on these pedal electric bikes, make sure your helmet is securely strapped. The brushless-powered launch rush is intoxicating. Terrain that was once considered difficult is now easily conquered!

Brushless motors are not only revolutionizing electric bikes; they are also reviving the joy of riding for a new generation.
